實作語音辨識-文字轉語音 使用ubuntu mate 16.04 在 raspberry pi 3

可以加裝人體紅外線感測器(PIR),用說的控制開關與電腦(要準備麥克風,這裡使用Logitech, Inc. QuickCam Zoom來測試)
先把UBUNTU MATE 安裝到RASPBERRY PI 3上
安裝好後點選歡迎畫面內的RASPBERRY PI資訊--> 調整檔案系統 , 讓UBUNTU可以使用完整的SD CARD 空間

 重新開機後 , 執行 系統--> 管理--> SOFTWARE UPDATER --> 這要跑1,2小時以上,先喝咖啡吧！ （更新完成後重新開機）

sudo apt-get install gcin  --> 中文輸入法,重新開機後就可以看到

 （新注音選詞音/拼音ctrl+alt+6）

開始安裝語音辨識與文字轉語音所需要的套件 python參考網站
sudo apt-get install python-pyaudio python3-pyaudio
sudo apt-get install portaudio19-dev python-all-dev python3-all-dev
sudo pip3 install --upgrade pip  (memo: update python3 pip)
sudo pip3 install --upgrade pyaudio

 上圖是參考網站內的說明--> 關於安裝pyaudio,這樣才能安裝到正確的pyaudio版本

sudo apt-get install flac
sudo pip3 install speechrecognition
sudo pip3 install gtts
ubuntu mate for raspberry pi 網站

================================================================
================================================================
再來 寫一小段python即可體驗語音辨識
#!/usr/bin/env python3

# NOTE: this example requires PyAudio because it uses the Microphone class

import speech_recognition as sr
import os
from gtts import gTTS
import time
import sys
import RPi.GPIO as GPIO
pin_pir = 18
stb_time = 3
pir_led = 23
GPIO.setmode(GPIO.BCM)
GPIO.setup(pin_pir, GPIO.IN)
GPIO.setup(pir_led, GPIO.OUT)
k=1
c=0
pir=0
def del_temp_mp3file():
    try:
        os.remove("test.mp3")
        print("test.mp3 file deleted.")
    except:
        print("test.mp3 檔案不存在!")

def txt2speech(m_str):
    del_temp_mp3file()
    tts = gTTS(text = m_str , lang='zh-tw')
    tts.save("test.mp3")
    os.system('omxplayer -o local test.mp3')

txt2speech("語音服務已經就緒")
print("speechRecognition alreadt for services...")
r = sr.Recognizer()
r.energy_threshold = 4000

for i in range(0, stb_time):
    print ('等候人體紅外線就緒... %d sec\r' % (stb_time - i)),
    sys.stdout.flush()
    time.sleep(1)
print('人體紅外線已經就緒...\n')

while k>0:
# obtain audio from the microphone
    #r = sr.Recognizer()
    with sr.Microphone() as source:
        print("語音服務聆聽中...")
        audio = r.listen(source)
    if(GPIO.input(pin_pir)):
        GPIO.output(pir_led,True)
        print ("偵測到有人 PIR detect...\r"),
        sys.stdout.flush()
        pir = 1
        time.sleep(3)
    else:
        pir = 0
        GPIO.output(pir_led,False)
        print ("沒有偵測到人 PIR not detect...\r")

# recognize speech using Google Speech Recognition
    try:
        # for testing purposes, we're just using the default API key
        # to use another API key, use `r.recognize_google(audio, key="GOOGLE_SPEECH_RECOGNITION_API_KEY")`
        # instead of `r.recognize_google(audio)`
        sr_txt = r.recognize_google(audio , language='zh_TW')
        #print("語音辨識結果:==> " + r.recognize_google(audio))
        if sr_txt == "停止":
            txt2speech("停止執行命令")
            c=0

        if sr_txt == "指令":
            txt2speech("請說")
            c=1
        if sr_txt == "結束程式" and c == 1 and pir == 1:
            txt2speech("語音服務已經關閉")
            k=0
        if sr_txt == "打開開關控制面板" and c == 1 and pir == 1:
            os.system('firefox http://192.168.1.252/relay.php')

        if sr_txt == "打開風場預報顯示圖" and c == 1 and pir == 1:
            os.system('firefox www.cwb.gov.tw/cwbwifi/')

        if sr_txt == "連線到樹莓派終端機" and c == 1 and pir ==1:
            os.system('mate-terminal -e "ssh pi@192.168.1.252"')

        if sr_txt == "樹莓派連線狀況" and c == 1 and pir == 1:
            os.system('ping -c 15 192.168.1.252')

        if sr_txt == "重新開機" and c == 1 and pir == 1:
            os.system('reboot')
        if sr_txt == "打開印表機" and c == 1 and pir == 1:
            os.system('mate-terminal -e " links http://192.168.1.252/openprt.php"')
            time.sleep(10)
            os.system('killall -9 links')

        if sr_txt == "關掉印表機" and c ==1 and pir == 1:
            os.system('mate-terminal -e " links http://192.168.1.252/closeprint.php"')
            time.sleep(10)
            os.system('killall -9 links')

        if sr_txt == "顯示開關狀態" and c==1 and pir==1:
            os.system('mate-terminal -e " links http://192.168.1.252/srelay.php"')
            time.sleep(10)
            os.system('killall -9 links')

        print("語音辨識結果:==> " + sr_txt)
        #txt2speech(sr_txt)

        #os.system('"C:\Program Files (x86)\Google\Chrome\Application\chrome.exe" http://192.168.1.252/vcr.php')
    except sr.UnknownValueError:
        print("Google Speech Recognition could not understand audio")
    except sr.RequestError as e:
        print("Could not request results from Google Speech Recognition service; {0}".format(e))

memo: sudo apt-get install links  文字模式的網頁瀏覽器

Use ubuntu mate 16.04 on raspberry pi 3 輸入此文章 2016-10-04 By Kokomo Lu

Raspberry Pi 2 IR LIRC 紅外線遙控GPIO

參考來源

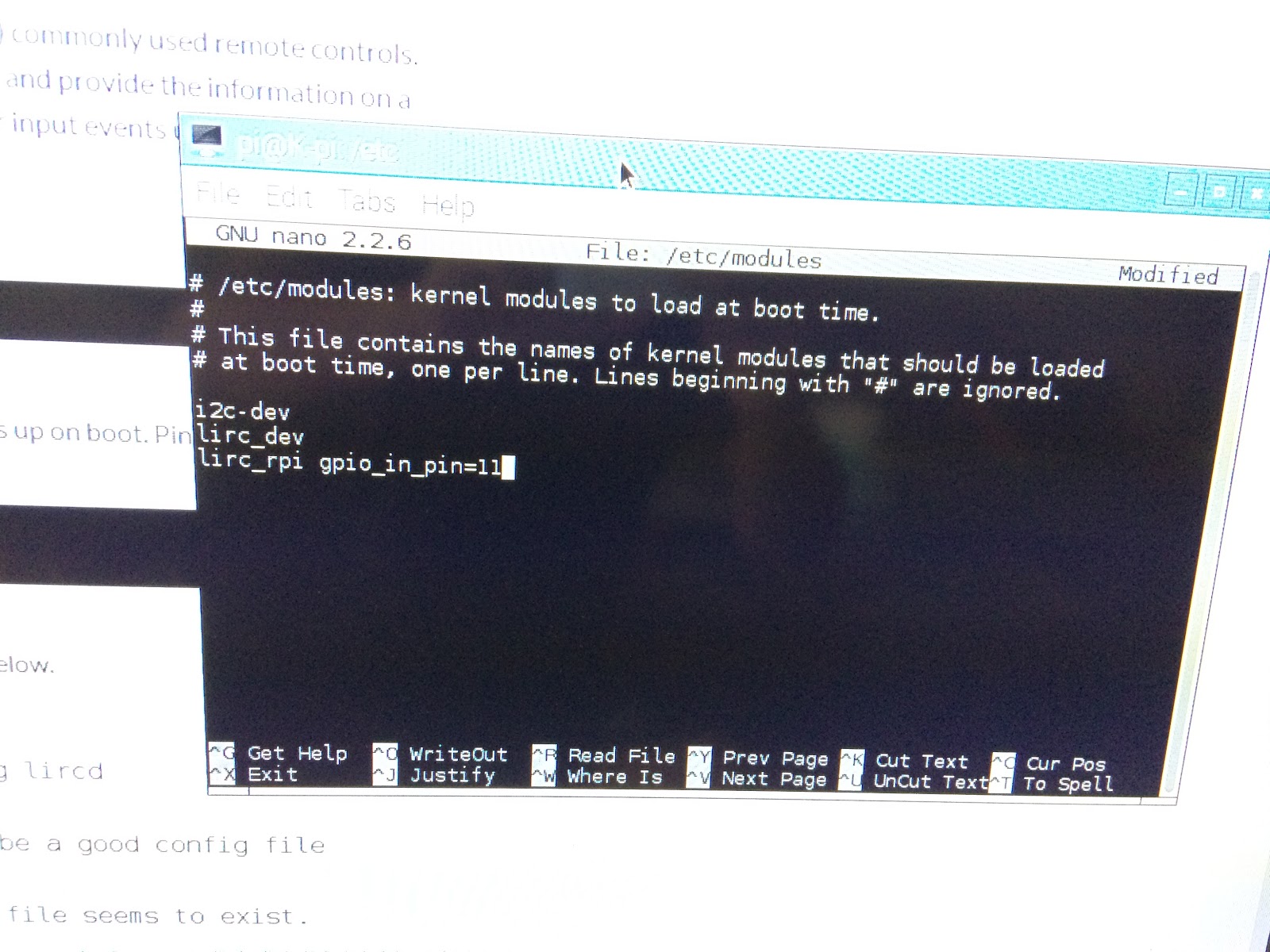

 http://www.jamesrobertson.eu/blog/2013/may/19/installing-lirc-on-raspbian.html

再用C寫一段程式去判斷紅外線接收到什麼訊號!

http://ozzmaker.com/how-to-control-the-gpio-on-a-raspberry-pi-with-an-ir-remote/

裝好LIRC後,使用irw 測試是否可正常接收資料時,可能會發生irw完全接收不到訊號的狀況(開機時執行checkir.sh來修改gpio的in and output function,可解決此狀況)

 設定lirc與遙控器配對時,須注意 namespace can use irread --list-namespace to check namespace

 再依序輸入正確的namespace 與按鍵配對 lircd.conf 在配對完成後會自動產生

    lircd.conf
# Please make this file available to others # by sending it to <lirc@bartelmus.de> # # this config file was automatically generated # using lirc-0.9.0-pre1(default) on Mon Apr 18 10:11:39 2016 # # contributed by # # brand: /home/pi/lircd.conf # model no. of remote control: # devices being controlled by this remote: # begin remote name /home/pi/lircd.conf bits 16 flags SPACE_ENC|CONST_LENGTH eps 30 aeps 100 header 8993 4472 one 600 1654 zero 600 527 ptrail 598 repeat 8978 2211 pre_data_bits 16 pre_data 0xFF gap 107705 toggle_bit_mask 0x0 begin codes KEY_0 0x6897 KEY_1 0x30CF KEY_2 0x18E7 KEY_3 0x7A85 KEY_4 0x10EF KEY_5 0x38C7 KEY_6 0x5AA5 KEY_7 0x42BD KEY_8 0x4AB5 KEY_9 0x52AD end codes end remote

 checkir.sh

#!/bin/bash mtaskno=`ps -ef | grep 'irread.py' | grep -v 'grep' | wc -l` if [ $mtaskno -eq 0 ] then echo "irread.py not exec! Now starting..." sudo python /home/pi/irread.py & else echo "irread.py running..." fi sleep 50 mtaskno=`ps -ef | grep 'sudo /home/pi/rpi_gpio_lirc' | grep -v 'grep' | wc -l` if [ $mtaskno -eq 0 ] then echo "rpi_gpio_lirc not exec ! Now starting..." sudo /home/pi/rpi_gpio_lirc & else echo "rpi_gpio_lirc running..." fi sleep 50 sudo killall python
sudo killall python : This irread.py will use about 25% cpu ,so 結束這個python task,IR也可以正常使用,ps:可能是測試時安裝多種lirc,lirc_python or gpio的關係?? raspberry pi can not receve IR songal so,不小心測試到這樣的方式...
不重複執行rpi_gpio_lirc , 重複執行會造成繼電器誤動作

若沒有先執行irread.py to initial gpio ,就直接執行rpi_gpio_lirc會造成所有控制中的gpio pin 全部
輸出 '0' 則會使全部的繼電器斷電,所以在執行checkir.sh時,會用sleep 50(50 sec) 來排除繼電器全斷的問題!

irread.py
#!/usr/bin/env python # author: Powen Ko import time import RPi.GPIO as GPIO GPIO.setmode(GPIO.BOARD) GPIO.setwarnings(False) GPIO_ECHO = 23 print "IR Signal" GPIO.setup(GPIO_ECHO,GPIO.IN) GPIO.setup(29,GPIO.OUT) GPIO.output(29,True) GPIO.setup(31,GPIO.OUT) GPIO.output(31,True) GPIO.setup(33,GPIO.OUT) GPIO.output(33,True) GPIO.setup(35,GPIO.OUT) GPIO.output(35,True) GPIO.setup(37,GPIO.OUT) GPIO.output(37,True) start=0 stop=0 duringDown=0 while True: start = time.time() duringDown=start-stop while GPIO.input(GPIO_ECHO)==0: start = time.time() while GPIO.input(GPIO_ECHO)==1: stop = time.time() duringUp = stop-start info = "Up:%7.f" % (duringUp *100000) + ",Down:%7.f" % (duringDown*100000) print info if duringUp>0.1: print("------------------") GPIO.cleanup()

rpi_gpio_lirc.c

#include <wiringPi.h> #include <errno.h> #include <stdio.h> #include <stdlib.h> #include <string.h> #include <lirc/lirc_client.h> #include <time.h> void flipLED (int led); //The WiringPi pin numbers used by our LEDs #define LED1 25 //atur #define LED2 24 //router #define LED3 23 //mod #define LED4 22 //tv #define LED5 21 //printer #define ON 1 #define OFF 0 int main(int argc, char *argv[]) { struct lirc_config *config; //Timer for our buttons int buttonTimer = millis(); char *code; char *c; //Initiate WiringPi and set WiringPi pins 4, 5 & 6 (GPIO 23, 24 & 25) to output. These are the pins the LEDs are connected to. if (wiringPiSetup () == -1) exit (1) ; pinMode (LED1, OUTPUT); pinMode (LED2, OUTPUT); pinMode (LED3, OUTPUT); pinMode (LED4, OUTPUT); pinMode (LED5, OUTPUT); //Initiate LIRC. Exit on failure if(lirc_init("lirc",1)==-1) exit(EXIT_FAILURE); //Read the default LIRC config at /etc/lirc/lircd.conf This is the config for your remote. if(lirc_readconfig(NULL,&config,NULL)==0) { //Do stuff while LIRC socket is open 0=open -1=closed. while(lirc_nextcode(&code)==0) { //If code = NULL, meaning nothing was returned from LIRC socket, //then skip lines below and start while loop again. if(code==NULL) continue;{ //Make sure there is a 400ms gap before detecting button presses. if (millis() - buttonTimer > 400){ //Check to see if the string "KEY_1" appears anywhere within the string 'code'. if(strstr (code,"KEY_1")){ printf("MATCH on KEY_1 ATUR\n"); flipLED(LED1); buttonTimer = millis(); } else if(strstr (code,"KEY_2")){ printf("MATCH on KEY_2 ROUTER\n"); flipLED(LED2); buttonTimer = millis(); } else if(strstr (code,"KEY_3")){ printf("MATCH on KEY_3 MOD \n"); flipLED(LED3); buttonTimer = millis(); } else if (strstr (code,"KEY_4")){ printf("MATCH ON KEY_4 TV\n"); flipLED(LED4); buttonTimer = millis(); } else if (strstr (code,"KEY_5")){ printf("MATCH on KEY_5 PRINTER\n"); flipLED(LED5); buttonTimer = millis(); } } } //Need to free up code before the next loop free(code); } //Frees the data structures associated with config. lirc_freeconfig(config); } //lirc_deinit() closes the connection to lircd and does some internal clean-up stuff. lirc_deinit(); exit(EXIT_SUCCESS); } void flipLED (int led) { //If LED is on, turn it off. Otherwise it is off, so thefore we need to turn it on. if(digitalRead(led)==ON){ digitalWrite(led, OFF); printf("gpio off\n"); } else { digitalWrite(led, ON); printf("gpio on\n"); } }

VOICE RECOGNITION SOFTWARE FOR RASPBERRY PI

http://diyhacking.com/best-voice-recognition-software-for-raspberry-pi/ http://stevenhickson.blogspot.tw/2013/06/installing-and-updating-piauisuite-and.html Thank You

Raspberry pi wifi 無線網路自動重新連線

http://alexba.in/blog/2015/01/14/automatically-reconnecting-wifi-on-a-raspberrypi/ Thank You alexba.in

raspberry pi 用 python 取得dht11之溫濕度資料以php呼叫並顯示於網頁中

感謝開發者
dht11.py

import time import RPi.GPIO as GPIO class DHT11Result: 'DHT11 sensor result returned by DHT11.read() method' ERR_NO_ERROR = 0 ERR_MISSING_DATA = 1 ERR_CRC = 2 error_code = ERR_NO_ERROR temperature = -1 humidity = -1 def __init__(self, error_code, temperature, humidity): self.error_code = error_code self.temperature = temperature self.humidity = humidity def is_valid(self): return self.error_code == DHT11Result.ERR_NO_ERROR class DHT11: 'DHT11 sensor reader class for Raspberry' __pin = 0 def __init__(self, pin): self.__pin = pin def read(self): GPIO.setup(self.__pin, GPIO.OUT) # send initial high self.__send_and_sleep(GPIO.HIGH, 0.05) # pull down to low self.__send_and_sleep(GPIO.LOW, 0.02) # change to input using pull up GPIO.setup(self.__pin, GPIO.IN, GPIO.PUD_UP) # collect data into an array data = self.__collect_input() # parse lengths of all data pull up periods pull_up_lengths = self.__parse_data_pull_up_lengths(data) # if bit count mismatch, return error (4 byte data + 1 byte checksum) if len(pull_up_lengths) != 40: return DHT11Result(DHT11Result.ERR_MISSING_DATA, 0, 0) # calculate bits from lengths of the pull up periods bits = self.__calculate_bits(pull_up_lengths) # we have the bits, calculate bytes the_bytes = self.__bits_to_bytes(bits) # calculate checksum and check checksum = self.__calculate_checksum(the_bytes) if the_bytes[4] != checksum: return DHT11Result(DHT11Result.ERR_CRC, 0, 0) # ok, we have valid data, return it return DHT11Result(DHT11Result.ERR_NO_ERROR, the_bytes[2], the_bytes[0]) def __send_and_sleep(self, output, sleep): GPIO.output(self.__pin, output) time.sleep(sleep) def __collect_input(self): # collect the data while unchanged found unchanged_count = 0 # this is used to determine where is the end of the data max_unchanged_count = 100 last = -1 data = [] while True: current = GPIO.input(self.__pin) data.append(current) if last != current: unchanged_count = 0 last = current else: unchanged_count += 1 if unchanged_count > max_unchanged_count: break return data def __parse_data_pull_up_lengths(self, data): STATE_INIT_PULL_DOWN = 1 STATE_INIT_PULL_UP = 2 STATE_DATA_FIRST_PULL_DOWN = 3 STATE_DATA_PULL_UP = 4 STATE_DATA_PULL_DOWN = 5 state = STATE_INIT_PULL_DOWN lengths = [] # will contain the lengths of data pull up periods current_length = 0 # will contain the length of the previous period for i in range(len(data)): current = data[i] current_length += 1 if state == STATE_INIT_PULL_DOWN: if current == GPIO.LOW: # ok, we got the initial pull down state = STATE_INIT_PULL_UP continue else: continue if state == STATE_INIT_PULL_UP: if current == GPIO.HIGH: # ok, we got the initial pull up state = STATE_DATA_FIRST_PULL_DOWN continue else: continue if state == STATE_DATA_FIRST_PULL_DOWN: if current == GPIO.LOW: # we have the initial pull down, the next will be the data pull up state = STATE_DATA_PULL_UP continue else: continue if state == STATE_DATA_PULL_UP: if current == GPIO.HIGH: # data pulled up, the length of this pull up will determine whether it is 0 or 1 current_length = 0 state = STATE_DATA_PULL_DOWN continue else: continue if state == STATE_DATA_PULL_DOWN: if current == GPIO.LOW: # pulled down, we store the length of the previous pull up period lengths.append(current_length) state = STATE_DATA_PULL_UP continue else: continue return lengths def __calculate_bits(self, pull_up_lengths): # find shortest and longest period shortest_pull_up = 1000 longest_pull_up = 0 for i in range(0, len(pull_up_lengths)): length = pull_up_lengths[i] if length < shortest_pull_up: shortest_pull_up = length if length > longest_pull_up: longest_pull_up = length # use the halfway to determine whether the period it is long or short halfway = shortest_pull_up + (longest_pull_up - shortest_pull_up) / 2 bits = [] for i in range(0, len(pull_up_lengths)): bit = False if pull_up_lengths[i] > halfway: bit = True bits.append(bit) return bits def __bits_to_bytes(self, bits): the_bytes = [] byte = 0 for i in range(0, len(bits)): byte = byte << 1 if (bits[i]): byte = byte | 1 else: byte = byte | 0 if ((i + 1) % 8 == 0): the_bytes.append(byte) byte = 0 return the_bytes def __calculate_checksum(self, the_bytes): return the_bytes[0] + the_bytes[1] + the_bytes[2] + the_bytes[3] & 255

gettc.py (取得溫度濕度) import RPi.GPIO as GPIO import dht11 import time import datetime import os # initialize GPIO GPIO.setwarnings(False) GPIO.setmode(GPIO.BCM) GPIO.cleanup() def gettc(): # read data using pin gpio4 instance = dht11.DHT11(pin = 4) i=0 while i<1000: result = instance.read() if result.is_valid(): print datetime.datetime.now() print("%d" % result.temperature) print("%d" % result.humidity) #return result.temperature + "C" res=os.popen('vcgencmd measure_temp').readline() print res.replace("temp=","").replace("'C\n","") i=1005 time.sleep(1) i += 1 gettc()

php

<html> <head> <?php if (isset($_POST['printon'])) { exec('sudo python /var/www/html/openprintpower.py'); } if (isset($_POST['printoff'])) { exec('sudo python /var/www/html/closeprintpower.py'); } if (isset($_POST['tvon'])) { exec('sudo python /var/www/html/opentvpower.py'); } if (isset($_POST['tvoff'])) { exec('sudo python /var/www/html/closetvpower.py'); } if (isset($_POST['modon'])) { exec('sudo python /var/www/html/openmodpower.py'); } if (isset($_POST['modoff'])) { exec('sudo python /var/www/html/closemodpower.py'); } if (isset($_POST['adslon'])) { exec('sudo python /var/www/html/openadslpower.py'); } if (isset($_POST['adsloff'])) { exec('sudo python /var/www/html/closeadslpower.py'); } if (isset($_POST['routeron'])) { exec('sudo python /var/www/html/openrouterpower.py'); } if (isset($_POST['routeroff'])) { exec('sudo python /var/www/html/closerouterpower.py'); } ?> <title>K REMOTE SCREEN</title> <style type="text/css"> @import url(http://fonts.googleapis.com/css?family=Dosis:200,400,500,600); html, body { height: 100%; } body { background: #f2f2f2; } .container { width: 300px; margin: 10px auto 0; } .de .den, .de .dene, .de .denem, .de .deneme { position: absolute; left: 50%; top: 50%; } .de { position: relative; width: 240px; height: 240px; border-radius: 100%; box-shadow: 0 0 10px rgba(0, 0, 0, .1); background-color: transparent; } .den { position: relative; width: 210px; height: 210px; margin: -105px 0 0 -105px; border-radius: 100%; box-shadow: inset 0 2px 10px rgba(0, 0, 0, .5), 0 2px 20px rgba(255, 255, 255, 1); background: #df3341; background: -moz-linear-gradient(left, #df3341 0%, #d4f355 50%, #61c0ec 100%); background: -webkit-gradient(linear, left top, right top, color-stop(0%,#df3341), color-stop(50%,#d4f355), color-stop(100%,#61c0ec)); background: -webkit-linear-gradient(left, #df3341 0%,#d4f355 50%,#61c0ec 100%); background: linear-gradient(to right, #df3341 0%,#d4f355 50%,#61c0ec 100%); position:relative; } .dene { width: 180px; height: 180px; margin: -90px 0 0 -90px; border-radius: 100%; box-shadow: inset 0 2px 2px rgba(255, 255, 255, .4), 0 3px 13px rgba(0, 0, 0, .85); background: #f2f6f5; background: -moz-linear-gradient(top, #f2f6f5 0%, #cbd5d6 100%); background: -webkit-gradient(linear, left top, left bottom, color-stop(0%, #f2f6f5), color-stop(100%, #cbd5d6)); background: -webkit-linear-gradient(top, #f2f6f5 0%, #cbd5d6 100%); background: -o-linear-gradient(top, #f2f6f5 0%, #cbd5d6 100%); } .denem { width: 160px; height: 160px; margin: -80px 0 0 -80px; border-radius: 100%; background: #cbd5d6; background: -moz-linear-gradient(top, #cbd5d6 0%, #f2f6f5 100%); background: -webkit-gradient(linear, left top, left bottom, color-stop(0%, #cbd5d6), color-stop(100%, #f2f6f5)); background: -webkit-linear-gradient(top, #cbd5d6 0%, #f2f6f5 100%); } .deneme { padding: 3px 10px 0 10px; width: 120px; height: 137px; display: inline-block; margin: -70px 0 0 -70px; color: #555; text-shadow: 1px 1px 1px white; font-family: 'Dosis'; font-size: 100px; font-weight: 400; text-align: center; } .deneme1 { padding: 3px 10px 0 10px; width: 100px; height: 137px; display: inline-block; margin: -70px 0 0 -70px; color: #555; text-shadow: 1px 1px 1px white; font-family: 'Dosis'; font-size: 100px; font-weight: 400; text-align: center; } .deneme span { font-size: 30px; font-weight: 200; } .deneme span1 { font-size: 50px; font-weight: 200; } .deneme span2 { font-size: 20px; font-weight: 200; } .deneme strong { position: absolute; right: 10px; top: 25px; font-size: 34px; } .deneme strong1 {position: absolute; right: 10px; top: 25px; font-size: 20px;} .deneme strong2 {position: absolute; right: 15px; top: 75px; font-size: 20px;} </style> </head> <body> <center> Raspberry pi 2 python control GPIO via Web Server <br> 192.168.1.252 </center> <center> <?php exec('sudo python /var/www/html/gettc.py',$m_tc); //print_r($m_tc); ?> 取得DHT11溫度濕度時間:<font style="font-size:30px;" > <?php echo $m_tc[0];?> </font> <!-- echo $m_tc[1] . "度 "; echo $m_tc[2] ."%<br>" ; --> <!-- 加入css溫度顯示 --> <table> <tr> <td><div class="container"> <div class="de"> <div class="den"> <div class="dene"> <div class="denem"> <div class="deneme"> <?php echo $m_tc[1];?><span></span><strong>°</strong> </div> </div> </div> </div> </div> </div> </td> <td><div class="container"> <div class="de"> <div class="den"> <div class="dene"> <div class="denem"> <div class="deneme"> <?php echo $m_tc[2];?><span></span><strong1>%</strong1> </div> </div> </div> </div> </div> </div> </td> <!-- raspberry pi cpu temp --> <td><div class="container"> <div class="de"> <div class="den"> <div class="dene"> <div class="denem"> <div class="deneme"> <span1><?php echo "CPU:\n" . $m_tc[3];?></span1><strong2>°</strong2> </div> </div> </div> </div> </div> </div> </td> </tr> </table> <!-- css 溫度顯示結尾 --> </center> <form method="post"> <table style="width: 100%; text-align: left; margin-left: auto; margin-right: auto;" border="0" > <tbody> <tr> <td style="text-align: center; font-size:60px;" >Turn Relay on</td> <td style="text-align: center; font-size:20px; color:blue;" >Status</td> <td style="text-align: center; font-size:60px;">Turn Relay off</td> </tr> <tr> <td style="text-align: center;" ><br> </td> <td style="text-align: center;" ><br> </td> <td style="text-align: center;" ><br> </td> </tr> <tr> <td style="text-align: left;"><button name="printon" style="font-size:60px;" >Printer ON</button></td> <td style="text-align: center;font-size:40px;"><?php $pinstatus=exec("gpio -g read 5"); if ($pinstatus) {echo "ON";} else {echo "OFF";} ?></td> <td style="text-align: right;"><button name="printoff" style="font-size:60px;" >Printer Off</button></td> </tr> <tr> <td><br><br></td> <td><br><br></td> <td><br><br></td></tr> <tr> <td style="text-align: left;"><button name="tvon" style="font-size:60px;">TV On</button></td> <td style="text-align: center;font-size:40px; "><?php $pinstatus=exec("gpio -g read 6"); if ($pinstatus) {echo "ON";} else {echo "OFF";} ?></td> <td style="text-align: right;"><button name="tvoff" style="font-size:60px;" >TV Off</button></td> </tr> <tr><td><br><br></td> <td><br><br></td> <td><br><br></td></tr> <tr> <td style="text-align: left;"><button name="modon" style="font-size:60px;">MOD On</button></td> <td style="text-align: center;font-size:40px; "><?php $pinstatus=exec("gpio -g read 13"); if ($pinstatus) {echo "ON";} else {echo "OFF";} ?></td> <td style="text-align: right;"><button name="modoff" style="font-size:60px;">MOD Off</button></td> </tr> <tr><td><br><br></td> <td><br><br></td> <td><br><br></td></tr> <tr> <td style="text-align: left;"><button name="adslon" style="font-size:60px;" >ATUR On</button></td> <td style="text-align: center;font-size:40px; "><?php $pinstatus=exec("gpio -g read 26"); if ($pinstatus) {echo "ON";} else {echo "OFF";} ?></td> <td style="text-align: right;"><button name="adsloff" style="font-size:60px;" >ATUR Off</button></td> </tr> <tr><td><br><br></td> <td><br><br></td> <td><br><br></td></tr> <tr> <td style="text-align: left;"><button name="routeron" style="font-size:60px;" >Router On</button></td> <td style="text-align: center;font-size:40px; "><?php $pinstatus=exec("gpio -g read 19"); if ($pinstatus) {echo "ON";} else {echo "OFF";} ?></td> <td style="text-align: right;"><button name="routeroff" style="font-size:60px;" >Router Off</button></td> </tr> </tbody> </table> </form> </body> </html>
